Trans-Con Model HTSBAPV
Sale price
Price
$0.00
Regular price
Unit price
per

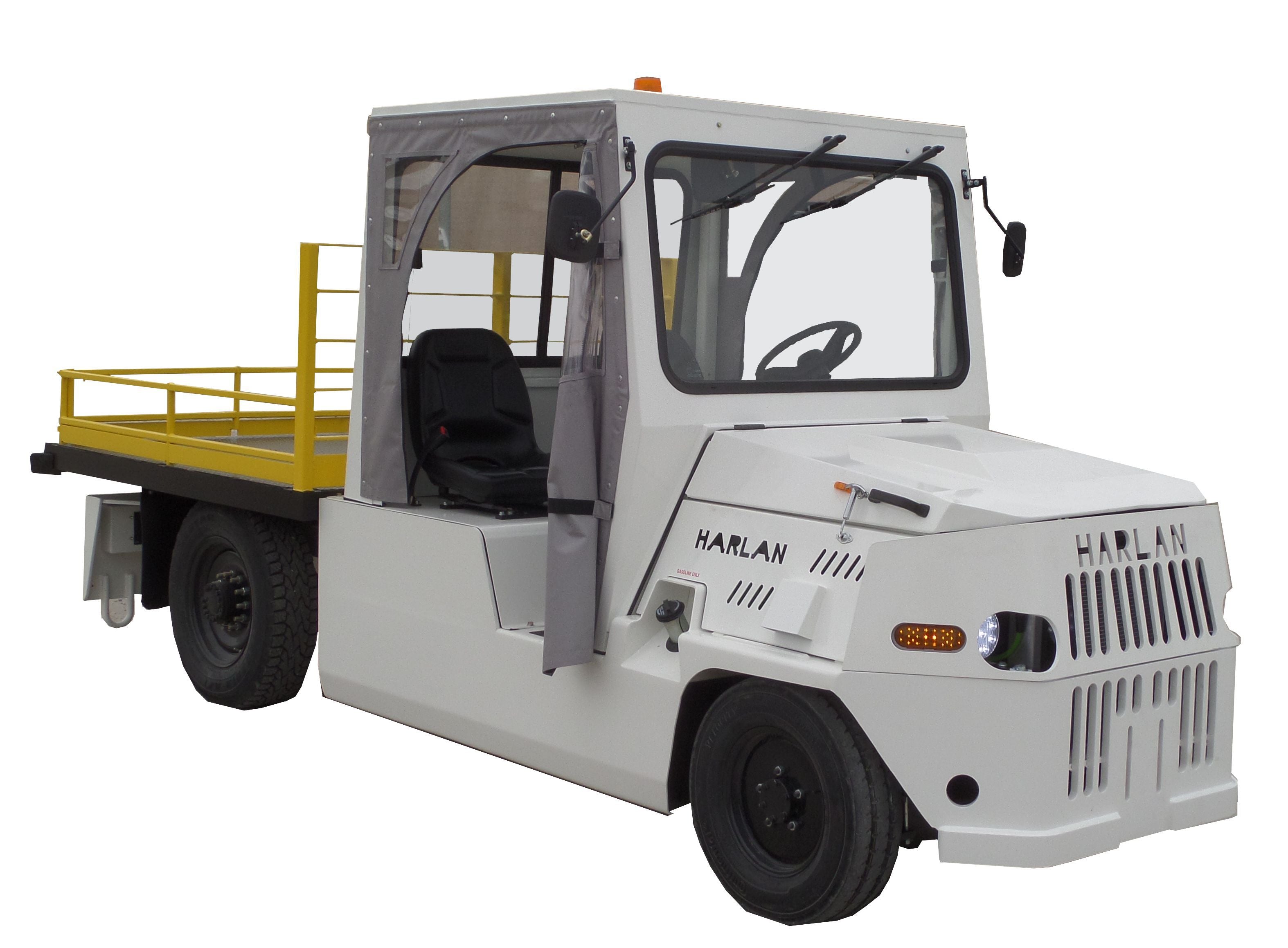

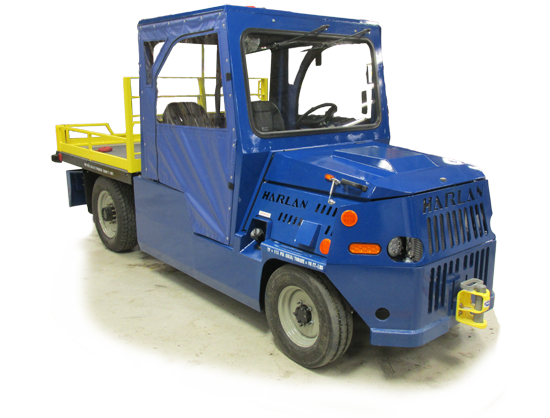

The Harlan Trans-Con Model HTSBAPV is available with the latest model US/Euro Emission compliant engines. This compact, shorter wheelbase, low profile design is robust with excellent all around visibility.
It is available in 2 options ranging from 4000 pounds to 5000 pounds in drawbar pull.
Designed as a multi-purpose vehicle for cargo and maintenance this unit can also be used for baggage applications. Options such as beacons, a variety of hitches and suspension style seats are also available.
Standard Features
- Cab
- F-N-R Shifter
- Keyless anti-restart ignition switch
- Two LED Headlights and turn signals
- Combination LED Tail/Stop Lights & Back-up Light

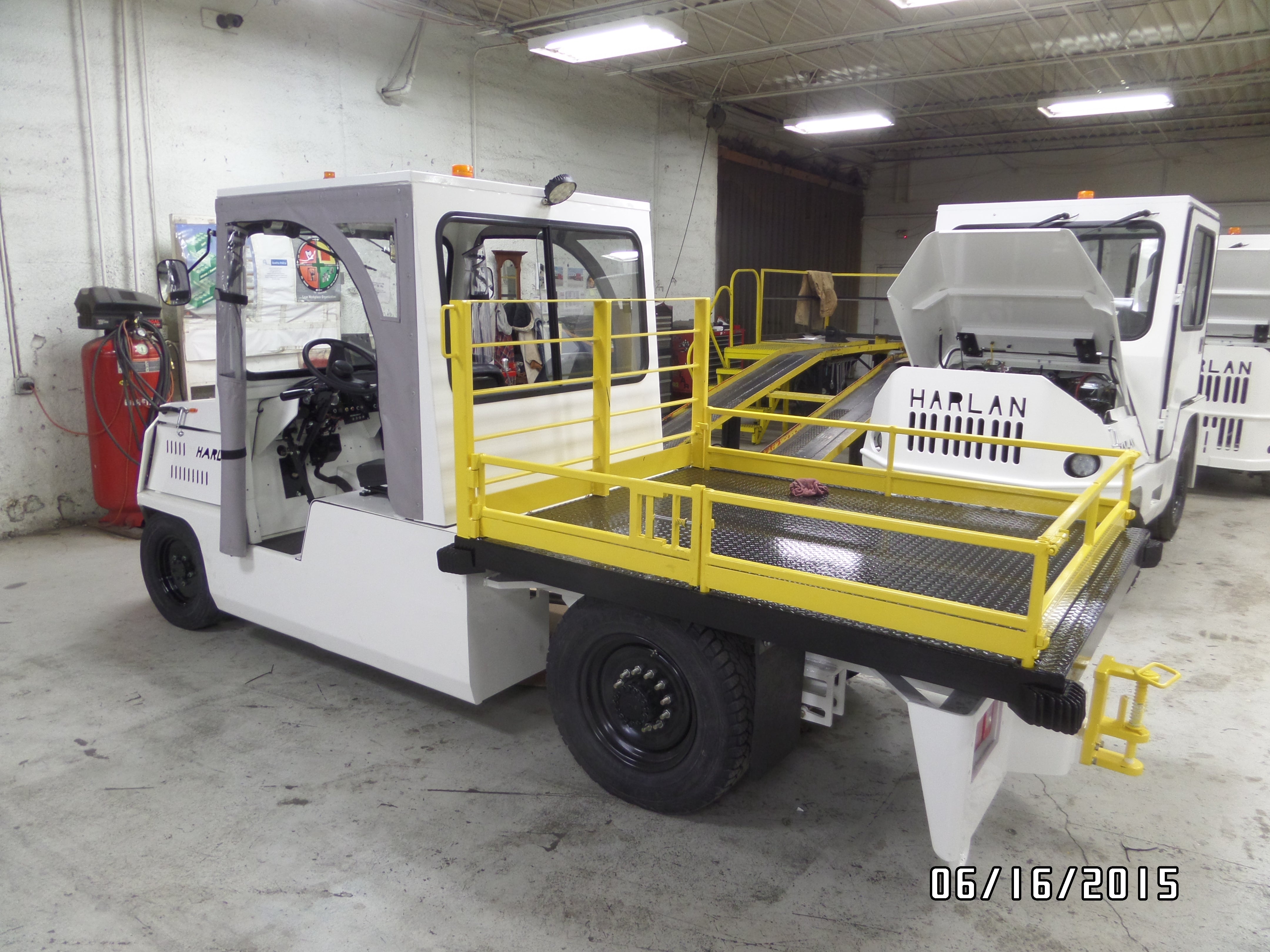

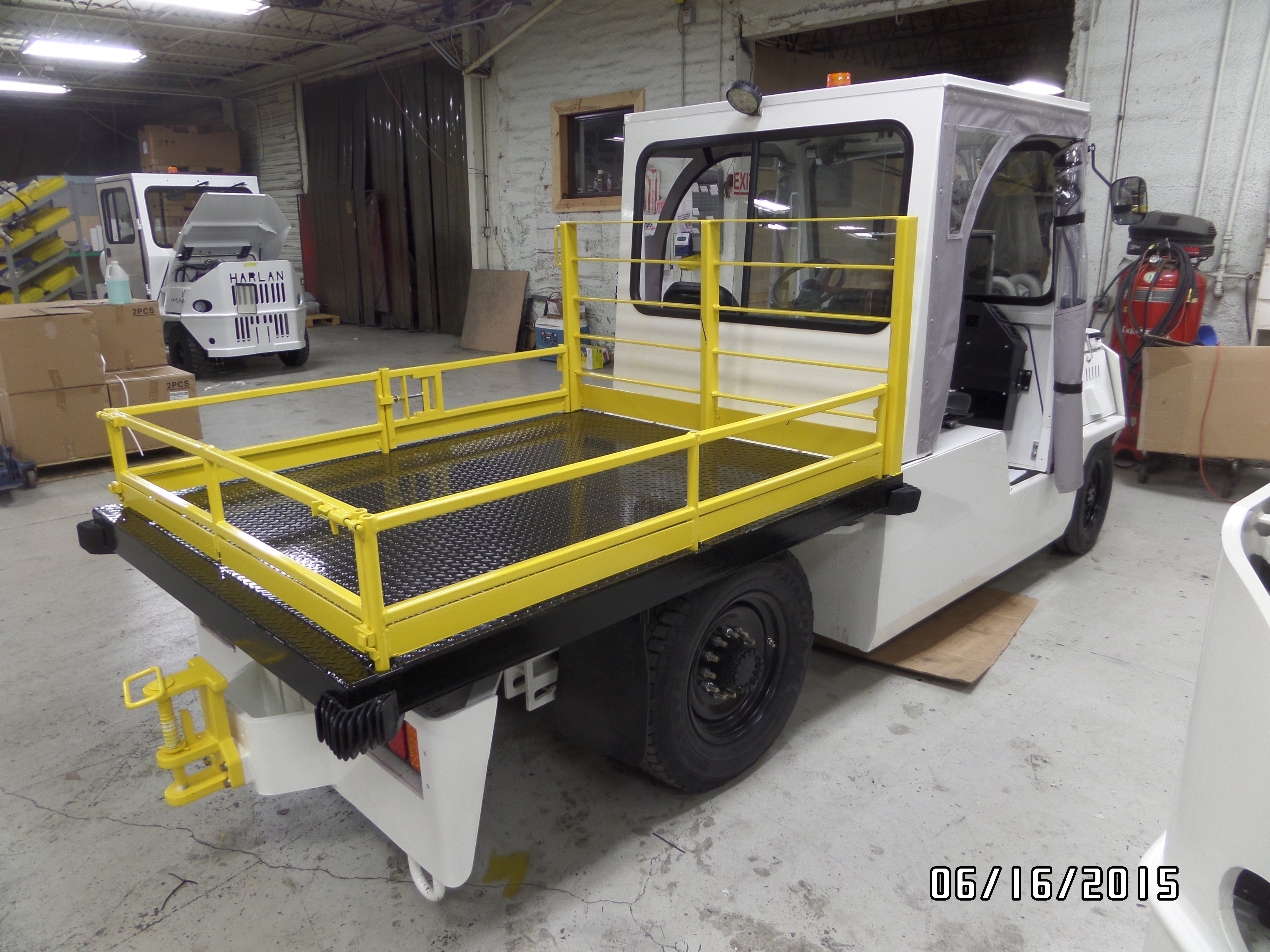

- Diamond plate flat bed with rails
- Water Temperature Gauge (or engine fault light)
- Engine Oil Pressure Gauge (or engine fault light)
- Engine Hour Meter
- Fuel Level Gauge
- Standard Driver and Passenger seat
- Retractable Seatbelts
- Rear Mount E-Hitch (other hitch options available)

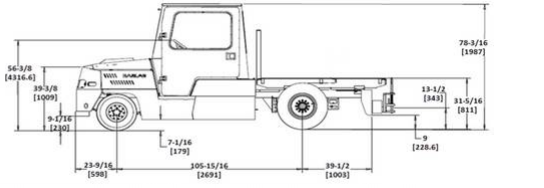

Specifications
| Length | 177.25" (4502.8mm) |
|---|---|
| w/ rear hitch 182" (4623mm) | |
| Width | 56" (1422mm) |
| Height | 56 3/8" (1442mm) |
| w/ Cab 81.5" (2070mm) | |
| Wheel Base | 105 5/16"(2691mm) |
| Ground Clearance | 6" (152mm) |
| Bed Length | 74" (1879.6mm) |
| Bed Width | 56" (1422mm) |
| Load Capacity | 4000 lbs (1814 kg) -- 4k |
| 3000 lbs(1361 kg) -- 5k | |
| Drive Axle | Harlan Off-set - 7,000 lbs (3175 kg) Load Capacity |
| Steer Axle | Heavy-Duty Harlan |
| Suspension | Front: Leaf Springs |
| Rear:Shocks and Coil Springs | |
| Service Brakes | Hydraulic/Hydraulic, Front and rear single disc brakes |
| Towing Coupler | E-Hitch w/ 1" pin (other options available) |
| Tires | Front:165/R13 |
| Rear:LT225/75Rx16 | |

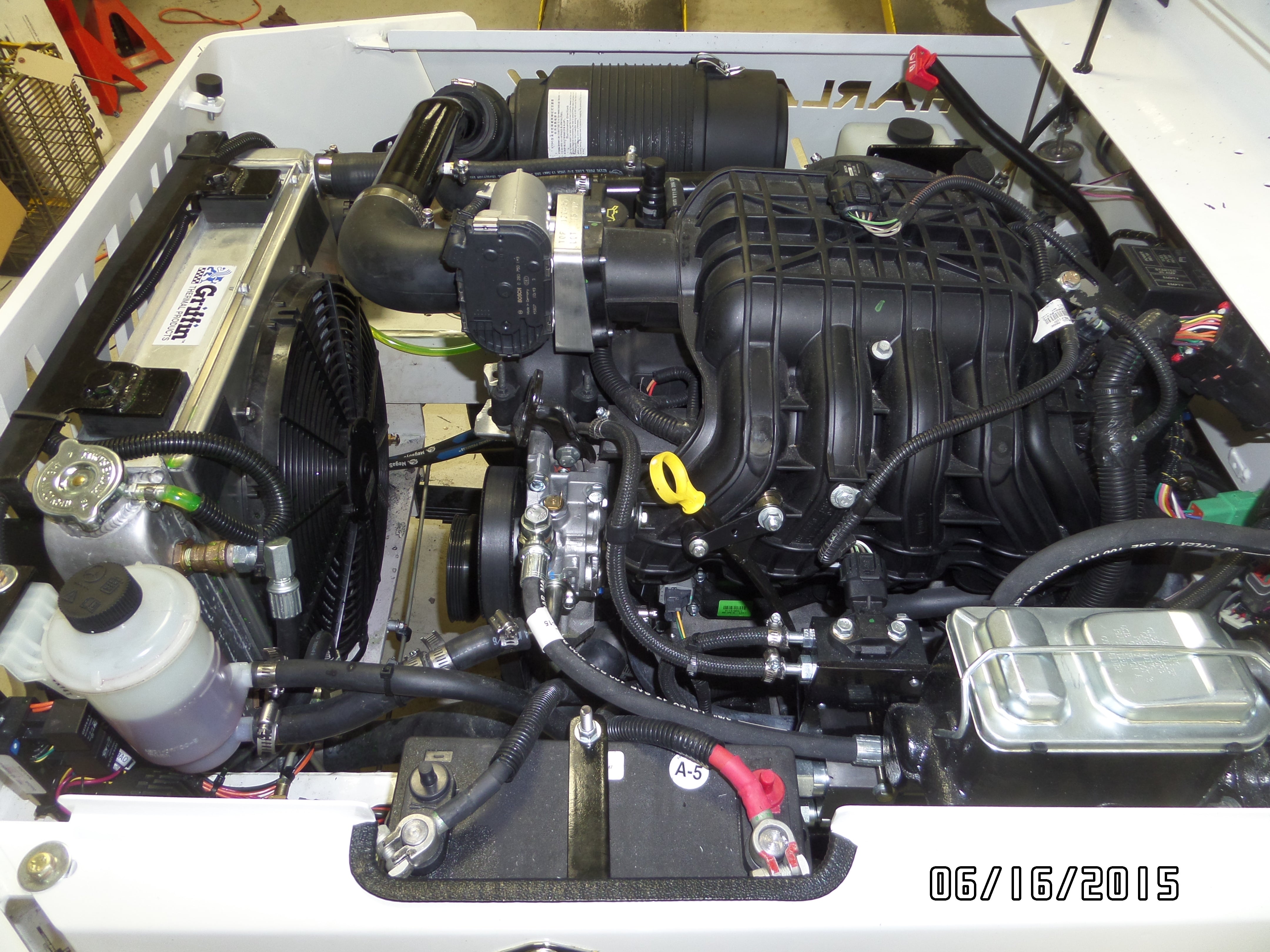

| Engine | Latest Model US/Euro Emission Diesel, Gasoline, LPG |
| Transmission | Automatic Industrial |
| Electrical | 12V System |
| Steering System | Hydrostatic |
| Cooling | Liquid cooled radiator with transmission cooler |
| Park Brake | Mechanical Drum, Lever Activated |
Drawbar Pull
| |
HTSBAPV40 | HTSBAPV50 |
|---|---|---|
| Drawbar Pull | 4000 lbs. (17.8 kN) | 5000 lbs. (22.2 kN) |
