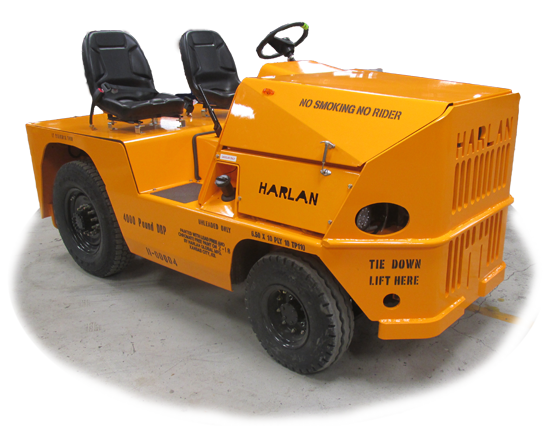

The Harlan Classic Model HT is available with the latest tier rated Diesel, Gasoline and LPG engines. This high in-demand model is designed for medium-duty cargo and baggage applications.

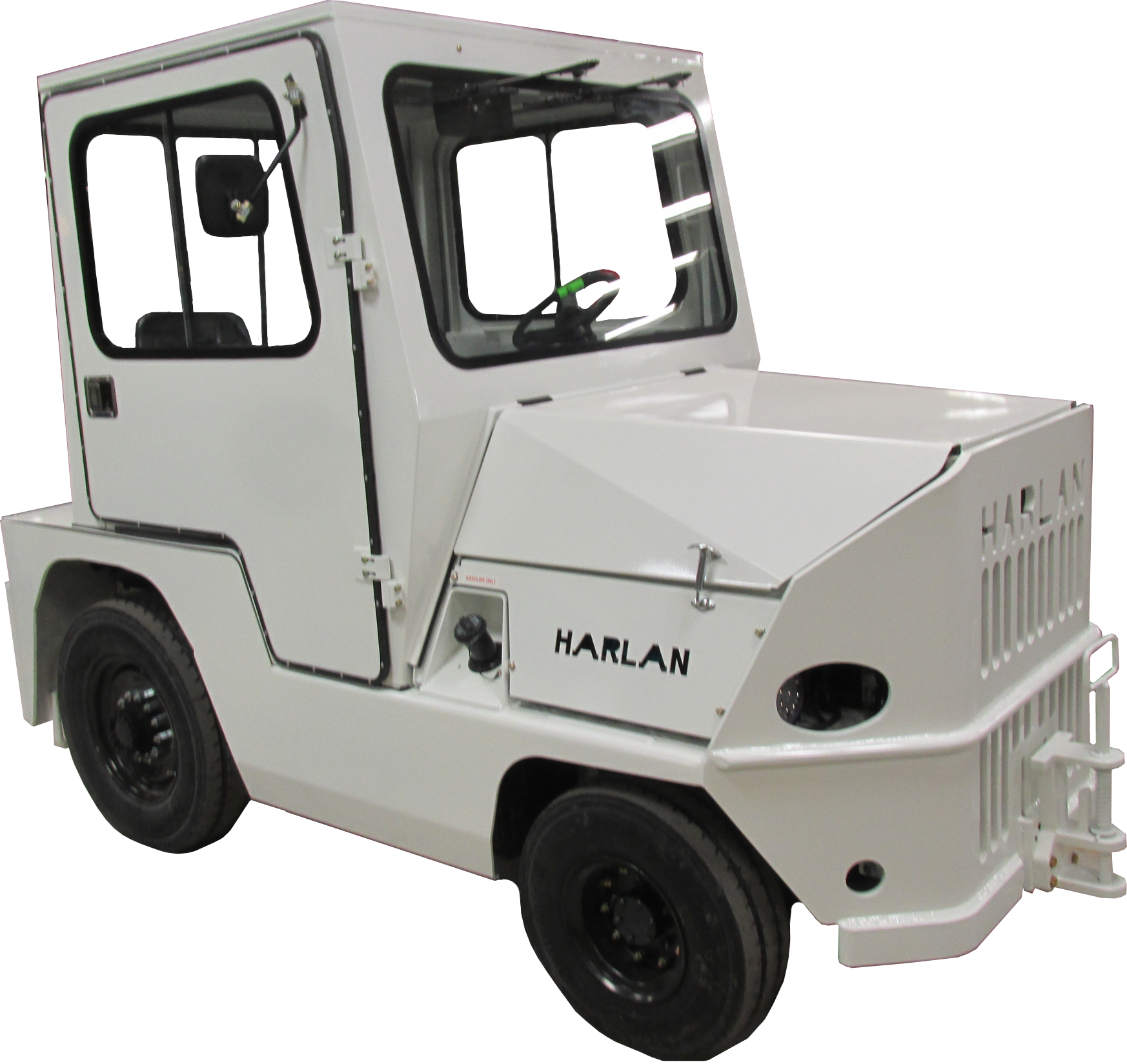

This unit can also be utilized for pushback of small aircraft (with front hitch option package). Some options include complete cab assembly, heat/defrost, mirrors, beacons, variety of hitches and suspension style seats.
Standard Features
- F-N-R Shifter
- Keyless anti-restart ignition switch
- Two LED Headlights and turn signals
- Combination LED Tail/Stop Lights & Back-up Light
- Volt meter (or engine fault light)
- Water Temperature Gauge (or engine fault light)
- Engine Oil Pressure Gauge (or engine fault light)
- Engine Hour Meter
- Fuel Level Gauge
- Standard Driver and Passenger seat
- Retractable Seatbelts
- Rear Mount E-Hitch (other hitch options available)
Specifications
| Length | 112.25" (2852mm) |
|---|---|
| w/ rear hitch 120" (3048mm) | |
| Width | 56" (1422mm) |
| Height | 61" (1549mm) |
| w/ Cab 83.5" (2121mm) | |
| Wheel Base | 68"(1727mm) |
| Ground Clearance | 6" (152mm) |
| Drive Axle | Heavy-Duty Harlan - 8200 lbs (3719 kg) Load Capacity |
| Steer Axle | Heavy-Duty Harlan with 1 1/8" Kingpin |
| Suspension | Front: Leaf Spring |
| Rear:Leaf Springs | |
| Service Brakes | Hydraulic/Hydraulic, dual rear disc with optional front brakes |
| Towing Coupler | E-Hitch w/ 1" pin (other options available) |
| Tires | Front: 6.50 x 10 |
| Rear:LT225/75Rx16 | |
| Engine | Latest Model US/Euro Emission Diesel, Gasoline, LPG |
| Transmission | Automatic Industrial |
| Electrical | 12V System |
| Steering System | Hydrostatic |
| Cooling | Liquid cooled radiator with integrated transmission cooler |
| Park Brake | Mechanical Drum, Electrically activated |
Drawbar Pull
| |
HT30 | HT40 | HT50 | HT60 |
|---|---|---|---|---|
| Drawbar Pull | 3000 lbs. (13.3 kN) | 4000 lbs. (17.8 kN) | 5000 lbs. (22.2 kN) | 6000 lbs. (26.7 kN) |
